LGM Elan

[rip]

I know that Bob, I believe is doing a Nitron/Eibach setup and I would wait but the Avos were just sooooo bad.

Nitron are actually producing the kits now, so I won't have the only Nitron Elan for much longer!
Several UK Elaners had fitted Fed dampers in the past but remarked how they had a detrimental effect on handling. There must be something very different about the Fed setup so I'm not sure the UK Nitron setup would be right for your Elan.

[bobbrown]

The Nitron dampers are now available.

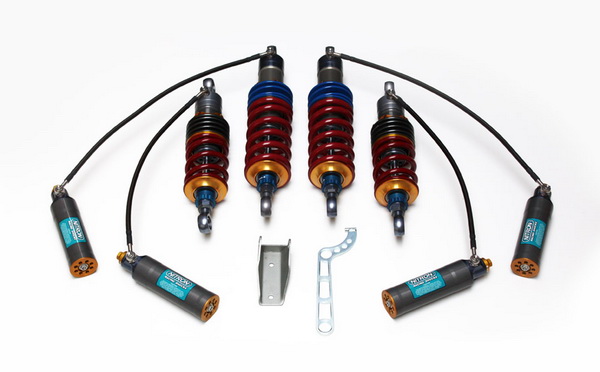

You can get them in different configurations so you could opt for a 4 way damper with remote reservoirs but they are expensive and they can be supplied with a pillow ball top mount which again adds to the cost.

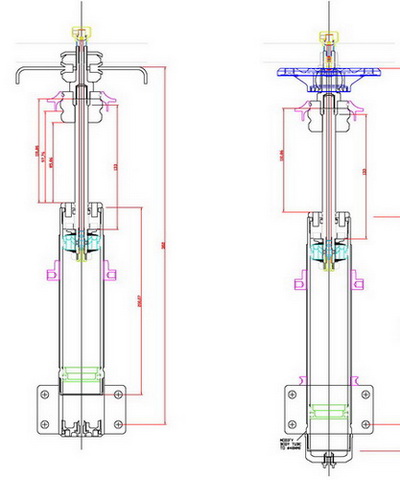

Lotus damper a.jpg (41.29 KiB) Viewed 8316 times

from these

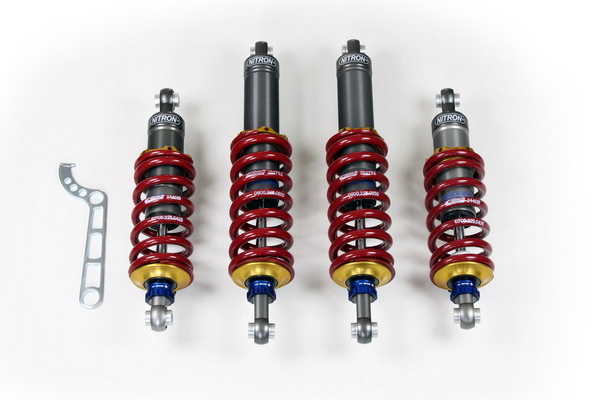

NTR Sport.jpg (79.65 KiB) Viewed 8316 times

to these


with the correct mounts which have now been engineered to suit the front yoke, rears are easy as the mounts are fairly standard.

I do not think there is anything fundamentally different with the fed setup just some minor changes to accommodate the difference in weights and springs and as the Nitron dampers are adjustable (with in a range) then I do not foresee any problems fitting them to a Fed car and the ride height can be adjusted to suit the Fed requirement.

Bob

[lotusgirlmarie]

Very nice indeed. I'd love to do a remote resevoir but as we all know space is limited.

You are correct with the Fed and ROW/UK Elans being different suspension wise. The prongerons are different for the front and the never beneftted from the change in angle of the rear A arms that later elans did for the ROW. Sad but true.

I was really trying to steer away from the upper pillow/pin mounts. Been quite a headache hor me. Been looking quite in depth at eyelet/T bar mounting. Simple yet effective.

[Don.Hasi]

You are correct with the Fed and ROW/UK Elans being different suspension wise. The prongerons are different for the front and the never beneftted from the change in angle of the rear A arms that later elans did for the ROW. Sad but true.

Could you please describe a little bit more detailed what you think is different?

thx and regards

[lotusgirlmarie]

The prongerons for Fed cars have a different part # in the manual. I would assume this to be due to the crash structure employed on the Fed cars. The upper A arms are different as well though I've not a set of ROW to compare. If I wereto venture a guess I would say angle of the A arm with relation to the lower control arm. I know that the rear A arms employ the earlier geometry, 2.5% IIFC vs 5% employed on later cars. Someone correct me if I'm wrong as I'm not 100% certain of the numbers.

[lotusgirlmarie]

new heater valve, Bugatti type tie rod and TPS. Heater valve is from Volvo world and is pretty much identical to OEM. Unfortunately it is still prone to the same type of failure..

[peter canepa]

Marie,

Working on my car again, finally finished the seat heaters. Big improvement I like to ride with the top down at night, with the stereo blasting. Are you able to help me with the woofer cabinet, that you did?

Hope all is well

Peter

[lotusgirlmarie]

I can see what I can do about a sub cabinet.

At the 'mo I've been working on daniel's car getting it sorted and going to work. Of course while all this has been going on I've all but neglected the upkeep on my girl. Well she let me know her displeasure. Clutch up and let go on the way to work a few days ago. When I got back to the employee lot I figured I'd give it a quick adjust then all would be well. That's what I did to go the last 1/2 mile to the lot. She wasn't really happy with that. I did manage to get her home but it was an ordeal. Clutch is deffo done. I figured 45K miles and 10 years of city driving and track days on a six puck racing clutch was pretty good. 'Bout time it let go. Just hope it didn't knacker the alloy flywheel to bad. Suggestions on a replacement? Was looking at a Spec stage 2 as I'm not going to track her much if at all anymore. Too much expense and heartache when some knob breaks something or looses a wheel and I inevitably strike it. Lucky like that. I just can't do it right now. I want my baby back to pristine. She has too many battle scars as it sits and I really want her back to show quality. Enough emotional turmoil. Anyone have suggestions on clutches they have used and price/vendor?

[lotusgirlmarie]

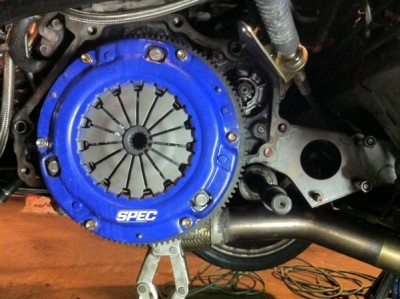

Clutch in but, throw out bearing retaining spring snapped Doh!!!!

[Monty]

Hey Marie,

How does the pedal feel now compared to the 6 puk? Any details/links on the clutch you purchased as i`m sure others would be interested for future Ref

I`ve got a 6 Puk and lightened fly to fit but think i`ll wait till the stock clutch burns out

[lotusgirlmarie]

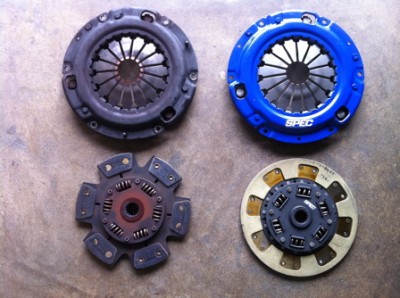

The six puc is far grabby-er. Still street able but you will have to learn to modulate it better. The pressure plates feel very different from a stage 2 to 3. Stage 2 is just heavier than stock where a stage 3 is noticeably heavier. The full face clutch is very easy to modulate and still holds the power of my updated engine. Both are good clutches. Just depends on what you want from it.

http://www.horsepowerfreaks.com/perform ... lutch_Kits
